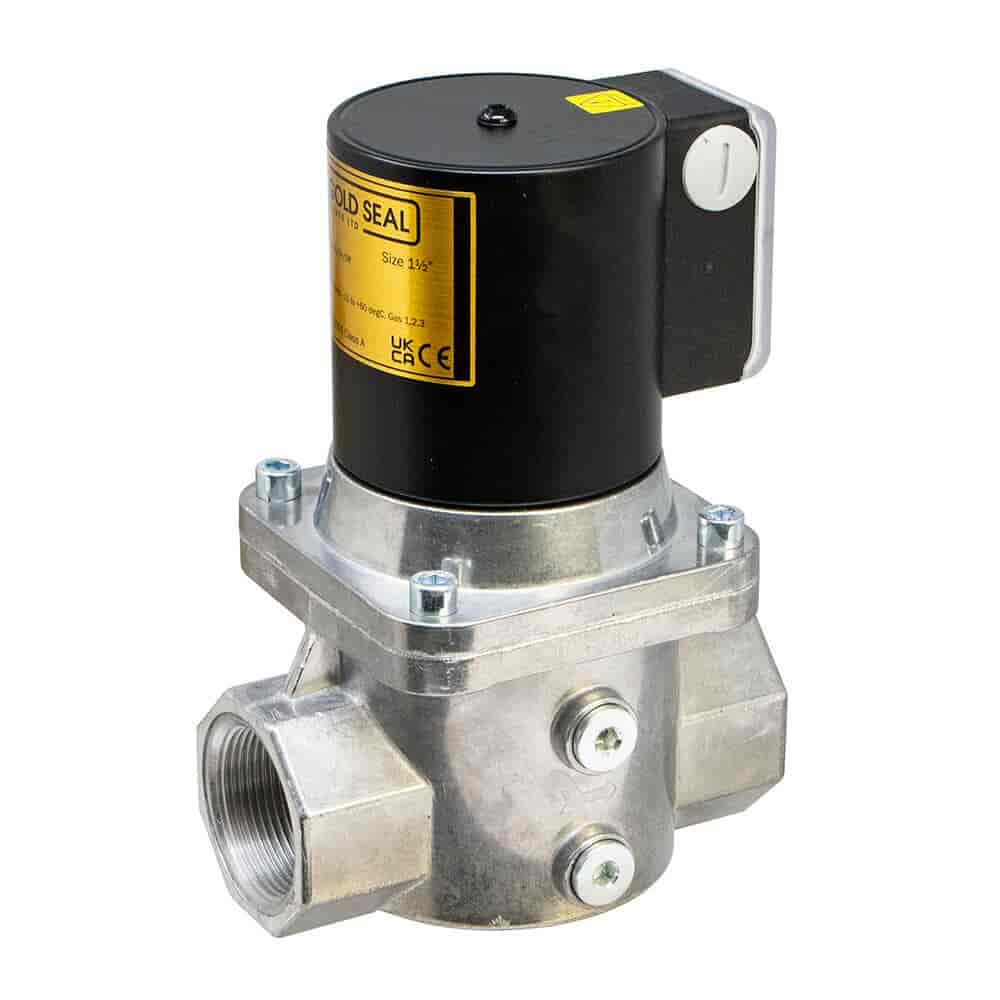

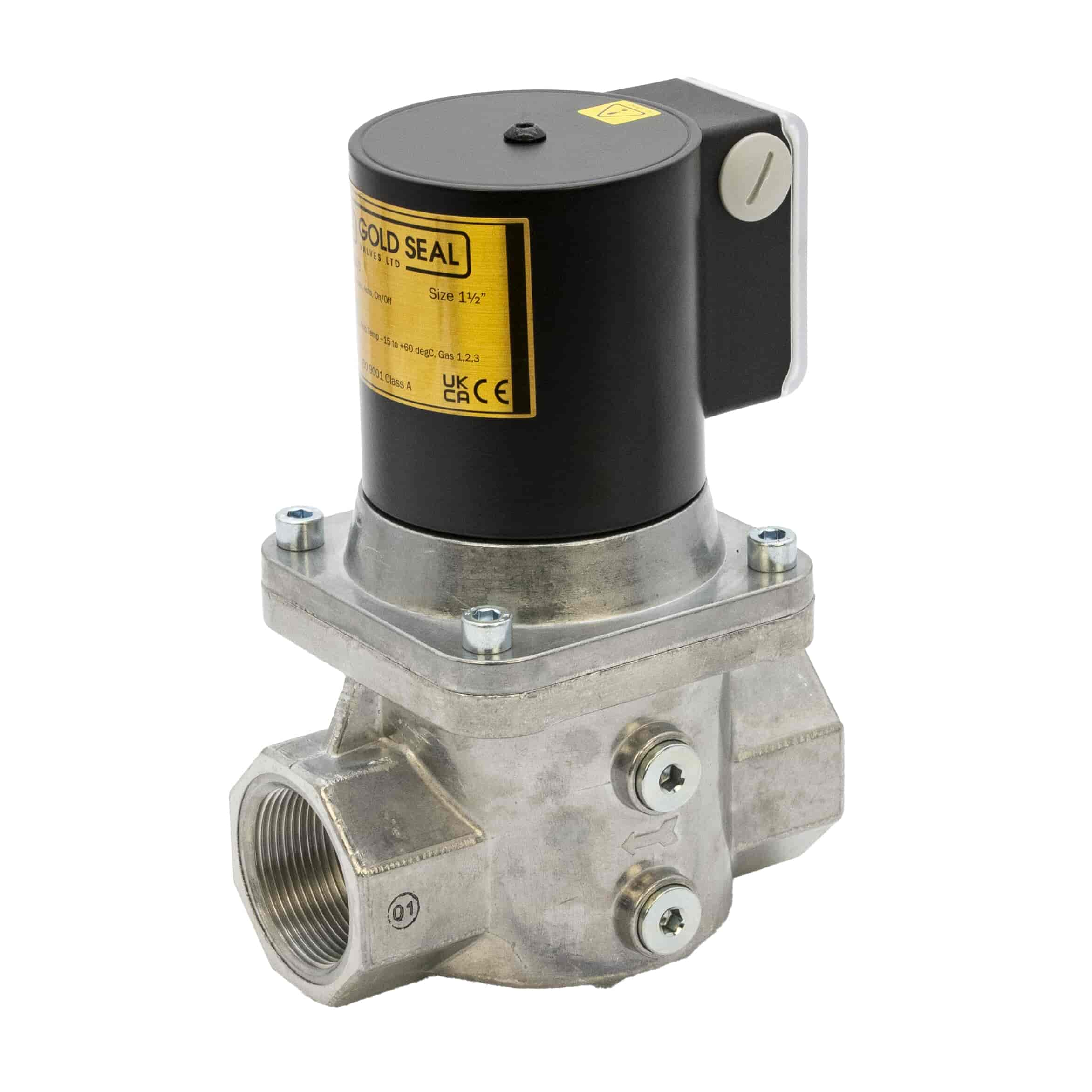

The Gold Seal GSV Solenoid Valve is a premier choice for gas distribution systems, providing reliable isolation and emergency shut-off capabilities. This 1.1/2" valve is compatible with various hydrocarbon gases, including natural gas, methane, and liquid petroleum gas, making it versatile for multiple applications.
Key Features:
Auto Reset Functionality: Automatically resets after shut-off, ensuring seamless operation without manual intervention.
Durable Construction: Made from high-quality aluminum alloy, this valve is built to last, offering robust performance in any environment.
Enhanced Safety: Features a blue indicator light on the terminal box, providing a clear visual signal when the valve is energized and operational.
Multiple Applications: Suitable for various uses, including CPI (closed position indicator) or gas proving systems, thanks to the G¼ holes on both sides and at the bottom of the valve body.
Compliance and Protection: Meets EN 161 standards and offers IP54 protection, ensuring high safety and reliability.
Specifications:
Size: 1.1/2" BSPT female connection
Voltage: 230VAC, 50/60Hz
Material: Aluminum alloy construction
Protection: IP54 rated
Standards: EN 161 compliant
Benefits:
Wide Compatibility: Suitable for a range of hydrocarbon gases, making it an excellent choice for diverse gas distribution needs.
Emergency Shut-Off: Quickly isolates gas flow in emergencies, enhancing safety for residential, commercial, and industrial applications.
Visual Indicator: The blue neon light provides an added level of safety by indicating the valve's operational status.
Reliable and Efficient: Ensures consistent performance and reduces the risk of gas-related incidents, protecting both property and lives.
Ideal for gas distribution applications, the Gold Seal GSV Gas Solenoid Valve with 1.1/2" BSP Female connection ensures your systems are safe, reliable, and efficient.
Specification
Gold Seal Gas Solenoid Shut Off Valve Auto Reset - 1.1/2" Specification
Brand
Gold Seal
Approvals
CE, Meets Class A EN161 approval.
Ambient Temperature
15°C to +60°C
Closing Time
Less than 1 Second
Connection
BSP F x F
Size
1.1/2"
Dimensions HxWxD
216 x 149 x 115mm
Applicable Gases
Natural Gas, LPG, Air and non-aggressive gases (EN 437, families 1, 2, 3)
Flow Rate Control
Yes
Inlet Pressure
200 mbar
IP Rating
IP 54
Nominal Bore
40mm
Power
230 V AC
Pressure Rating
200 mbar
Reset Type
Automatic
Suitable Applications
Gas Safety Shut-Off Valve, compatible with electrical connections to both alarm systems and emergency stop switches.
Voltage
230V AC (+10% -15%) 50 to 60 Hz
Weight
0.91 kg
Warranty
1 Year
Product Type
Gas Solenoid Valve
Features
Gold Seal Gas Solenoid Shut Off Valve Auto Reset - 1.1/2" Features
Auto Reset Feature: Automatically resets after shut-off, ensuring continuous protection.
Durable Aluminum Alloy Construction: Built to last with robust, corrosion-resistant materials.
Visual Indicator: Blue neon light signals when the valve is energised and operational.
Versatile Compatibility: Works with various hydrocarbon gases including natural gas, methane, and LPG.
Emergency Shut-Off Capability: Quickly isolates gas flow in emergencies for enhanced safety.
Multiple Application Ports: G¼ holes on both sides and bottom for CPI or gas proving systems.
High Safety Standards: Compliant with EN 161 and offers IP54 protection.
Reliable Performance: Ensures consistent and dependable operation in diverse environments.
Easy Installation: User-friendly design simplifies the installation process.
Energy Efficient: Operates on 230VAC, 50/60Hz, optimising energy use.
