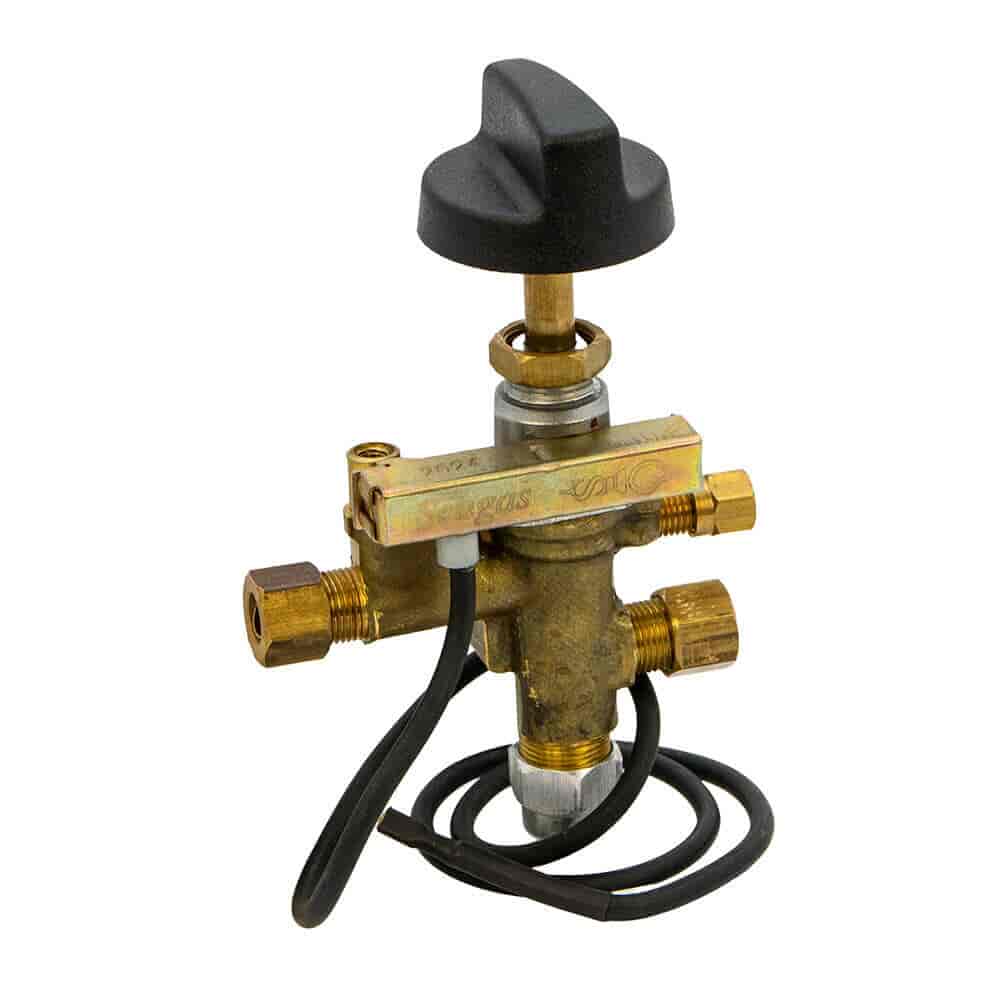

Gas Control Valve with Flame Supervision

For use on Gas Fires, Convector Heaters and other gas appliances. Incorporates FFD and Piezo Ignition. CE certified to the relevant requirements of EN 125, EN 126 and EN 1106 (Certificate No. E6055). Single-handed operation for ignition, flow, safety and gas control. Piezo lead length is 350mm. Operating temperature range : 0 to 80°C.
chevron-up

Product Details

Specification

Gas Control Valve with Flame Supervision Specification

FULL ON (adjustable) 0 to 1.5 m3/h NG at 20 mbar PD.
LOW (adjustable) 0.02 to 0.55 m3/h NG at 20 mbar PD.
Operating sequence :

  • Off
  • Pilot + ignition
  • Pilot + minimum flow
  • Pilot + maximum flow

Connections

  • 8mm Compression inlet
  • 8mm Compression outlet
  • 4mm pilot outlet
  • 100 mbar operating pressure
Features

Gas Control Valve with Flame Supervision Features

  • Inlet filter to protect the valve and pilot supply.
  • Thermoelectric flame supervision device.
  • Permanent pilot supply
  • Adjustable flow rates on both high and low positions
  • Pressure test point
  • Full EC certification
