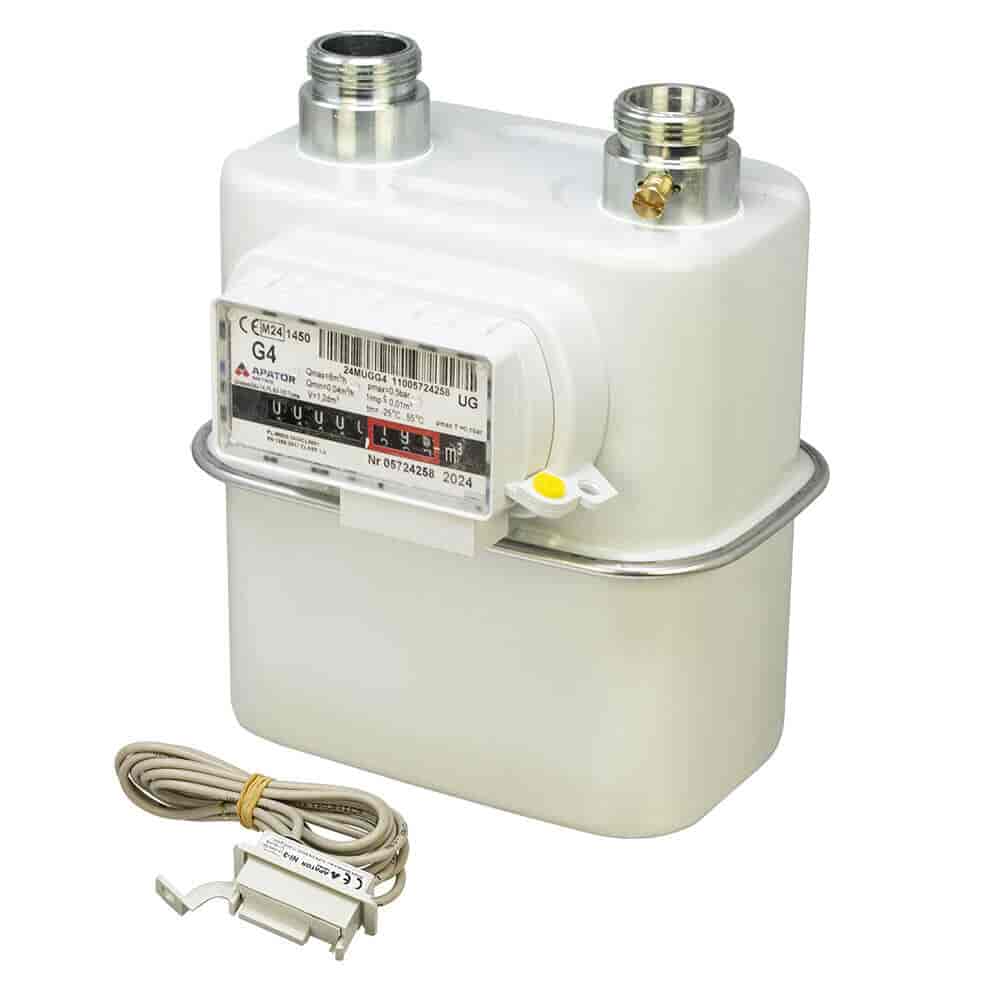

G4 Diaphragm Gas Meter with Pulse Plug and Lead

The Metrix G4 Diaphragm Gas Meter with the distance between the bosses of 110mm is designed for measurement of gas supplied to domestic housing etc, where maximum consumption of gas is equivalent to 6m3/h of air of density of 1,2 kg/m3. A pulse plug with a lead is supplied. The meter is fitted with a testpoint. The gas meters can be used for measurement of: Natural gas & LPG
chevron-up

Product Details

Specification

G4 Diaphragm Gas Meter with Pulse Plug and Lead Specification

Capacity 6 m³/h
Connection 1" BS 746
Dimensions

A = 110mm

B = 199mm

C = 70mm

D = 162mm

E = 220mm

Display Mechanical
Material Steel
Max Capacity 6 m³/h @ 0.5 mb Pressure Loss
Max Operating Pressure 500mbar
Meter Connection size 1" BS 746
Meter Type Diaphragm
Gas Type Natural Gas or LPG
Test Point Yes

Features

G4 Diaphragm Gas Meter with Pulse Plug and Lead Features

  • Manufactured by BS EN ISO 9001 and ISO 14001
  • MID approval G4-UG -4P to G16P and G1.6-UGPBS to G16PBS
  • G1.6 to G6 Fireproof up to 650°C @ 100mbar according to EN1359
  • Diaphragm gas meters, for natural gas, propane and butane, max pressure 500 mbar
  • Meters read in cubic metres
