Manufactured from high quality copper material, the solder ring range is ideal for use in drinking and sanitary water systems, both heating and chilled. The embedded ring of solder within the fittings ensures a quick and secure joint whilst removing the need for guess work.
WRAS approved.
Marked for full traceability.
Lead-free solder complying with EN 29453 and ISO 94533.
Supported by full manufacturer's warranty.
Compliant with relevant British standards - EN1254 / BS864.
Specification

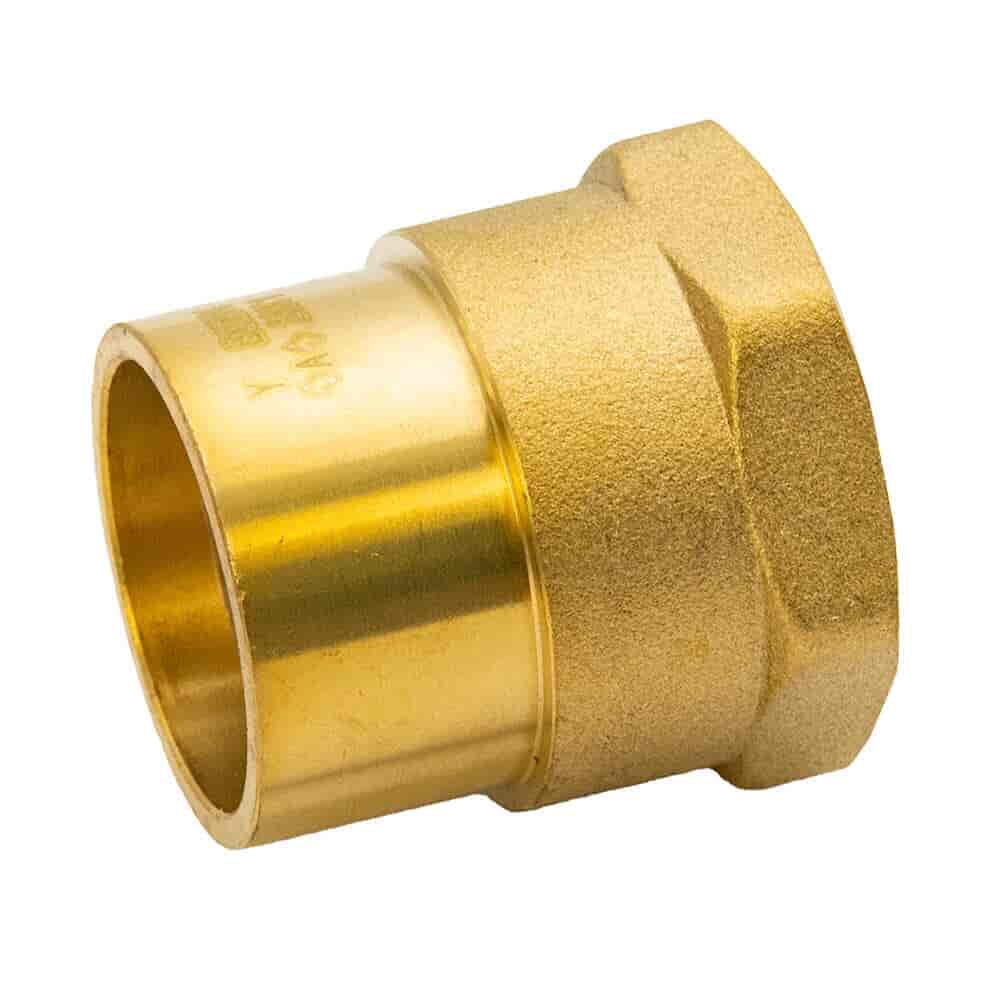

Copper Solder Ring Female Straight Coupler - 28mm x 1" FM Specification
Drinking Water
Yes
Sanitary Water
Yes
Heating & Chillid Water Systems
Yes
Compressed Air
Yes
Gas
Yes
Available Sizes
8 - 54mm
Operating Parameters
16 bar at 0°c - 30°c
10 bar at 65°c
7 bar at 95°c
6 bar at 110°c
Material
Copper & Yellow Brass
Features
Copper Solder Ring Female Straight Coupler - 28mm x 1" FM Features
Suitable for hot and cold drinking water, heatingand chilled water systems.
Contains lead-free solder complying with EN 29453 and ISO 9453.
Embedded solder ensures a quick and secure fitting without the guess-work.
Available in sizes 8 - 54 mm.
Manufactured from high quality copper material in accordance with EN 1254-1.
Suitable for connecting copper tubes in accordance with EN 1057.
