The testo 760 digital multimeter family comprises three models for all important electrical measuring tasks. Function keys replace the traditional dial on all three instruments, which means easier operation and greater reliability. Incorrect settings are now impossible because the measurement parameters are detected automatically via the assignment of the measuring sockets and also shown by the illumination of the appropriate function keys. This prevents accidentally blowing the meter’s fuse because of incorrect connections.
The testo 760-1 model is the standard version for virtually all daily measuring tasks.

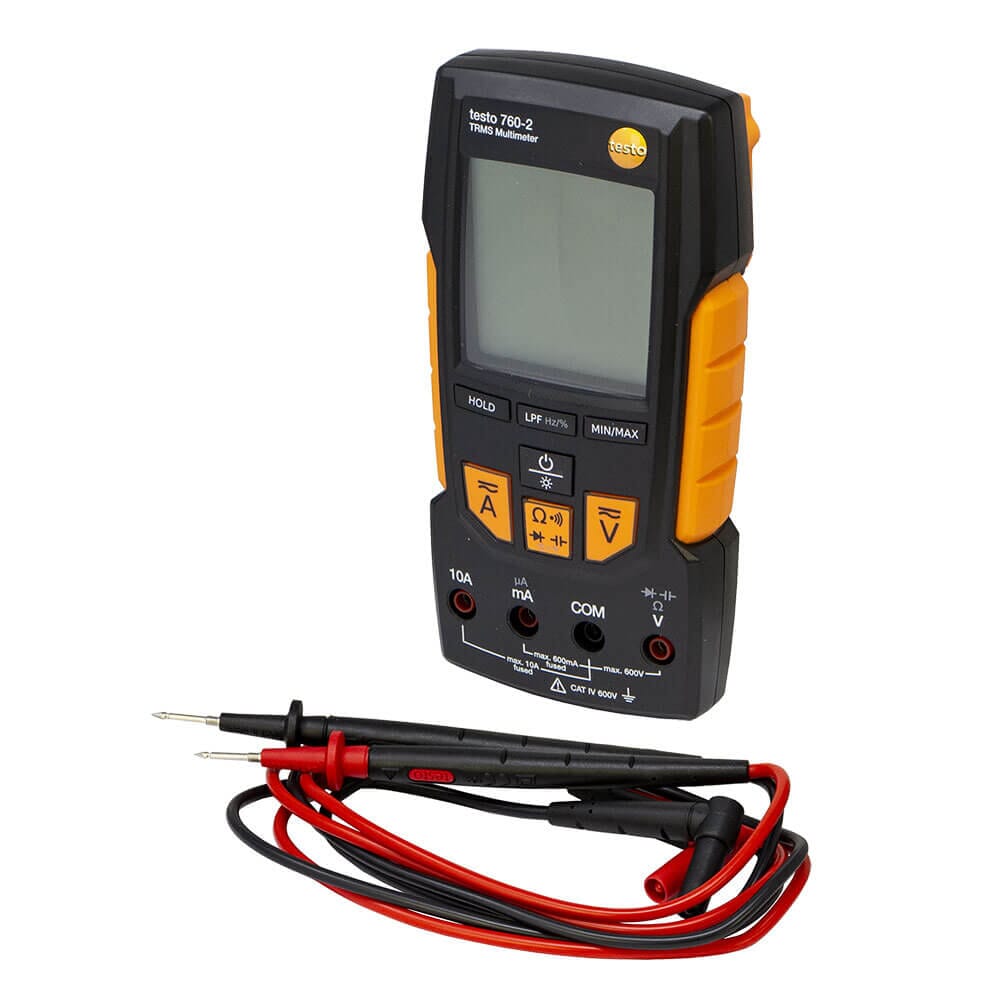

The testo 760-2 is differentiated by a larger current measurement range, the true root means square measurement - TRMS - and a low-pass filter.
The testo 760-3 is the model with the highest specification and, in addition to the features of the other two models, it has a voltage range of up to 1,000 V, along with higher measuring ranges for frequency and capacitance.testo 760-1 Digital Multimeter, batteries and 1 set of measuring cables
Dimensions | 167 x 85 x 45 mm |
---|---|
Operating temperature | -10 to 50 °C |
Protection class | IP64 |
Warranty | 2 years |
Storage temperature | -15 to +60 °C |
Weight | 340 g |
Overvoltage Category | CAT III 600V; CAT IV 300V |
Authorizations | CSA; TÜV; CE |
DC VOLTAGE | |
Measuring range / Resolution | 400 mV / 0.1 mV - 4.000 V / 1 mV - 40.00 V / 10 mV - 400.0 V / 100 mV - 600 V / 1 V |
Accuracy | ±(0.8 % of mv + 3 Digit) |
AC VOLTAGE | |
Measuring range / Resolution | 400 mV / 0.1 mV - 4.000 V / 1 mV - 40.00 V / 10 mV - 400.0 V / 100 mV - 600 V / 1 V |
Accuracy | ±(1.0 % of mv + 3 Digit) |
No dial, no risk: The testo 760-1 digital multimeter gives you an easier and more reliable measurement of all important electrical parameters than ever before. Assignment of the measuring sockets enables automatic detection of measurement parameters. You don't need to make any adjustments – and you can't make any mistakes.
