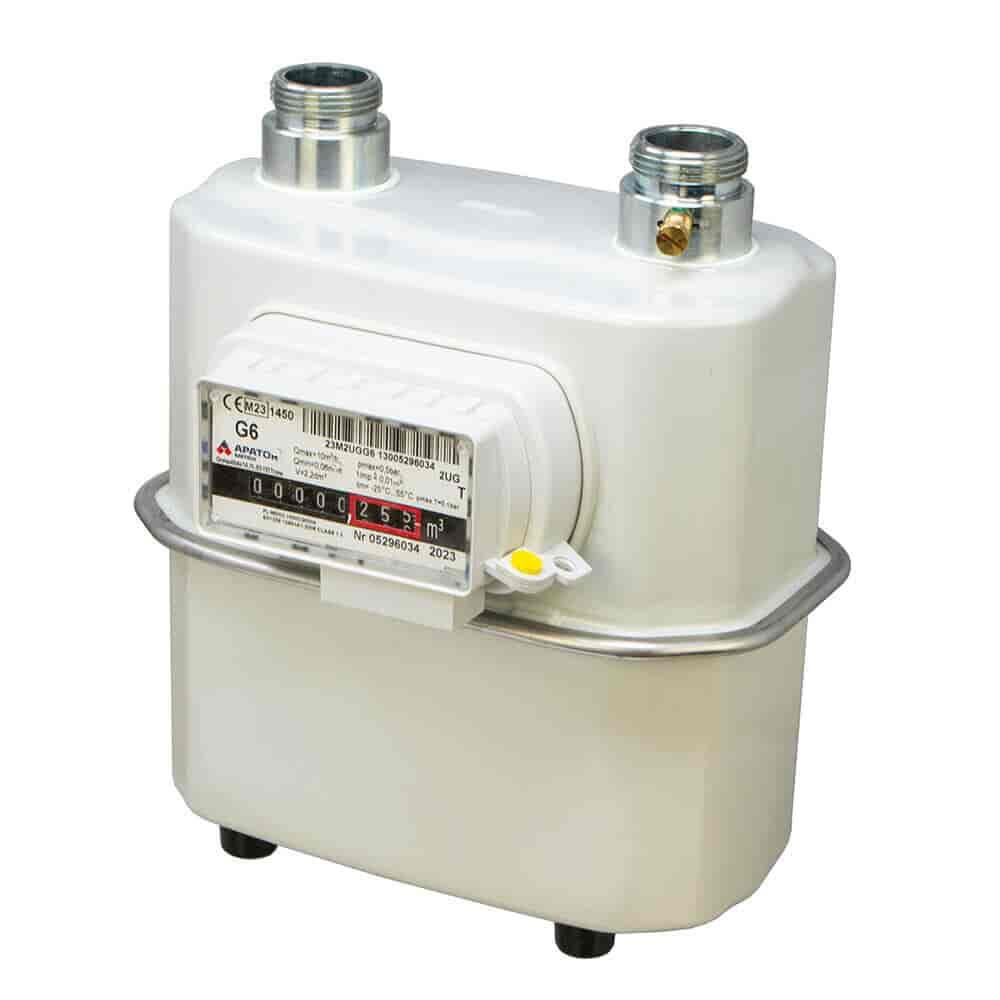

G6 Diaphragm Gas Meter -130mm Centres

The Metrix G6 Diaphragm Gas Meter is a compact G6 meter designed for measurement of gas supplied to domestic and commercial premises, where the maximum consumption of gas is equivalent to 10m3/h of air of density of 1,2 kg/m3. Supplied with a test point. The gas meters can be used for measurement of: Natural gas & LPG

chevron-up

Product Details

Specification

G6 Diaphragm Gas Meter -130mm Centres Specification

Capacity 10 m³/h
Connection 1" BS 746
Dimensions

A = 130mm

B = 231mm

C = 78mm

D = 187mm

E = 276mm

Display Mechanical
Material Steel
Max Capacity 10 m³/h @ 0.5 mb Pressure Loss
Max Operating Pressure 500mbar
Meter Connection size 1" BS 746
Meter Type Diaphragm
Gas Type Natural Gas or LPG
Test Point Yes





Features

G6 Diaphragm Gas Meter -130mm Centres Features

  • Manufactured by BS EN ISO 9001 and ISO 14001
  • MID approval G4-UG -4P to G16P and G1.6-UGPBS to G16PBS
  • G1.6 to G6 Fireproof up to 650°C @ 100mbar according to EN1359
  • Diaphragm gas meters, for natural gas, propane and butane, max pressure 500 mbar
  • Meters read in cubic metres
